HEICO SPORTIV High-performance sports brake system S90/V90 (234/235)

PREMIUM UPGRADE FOR S90, V90, XC90

$13,219.39
In Stock
SPECIAL ORDER - PLEASE CONTACT US FOR AVAILABILITY & REQUIREMENTS


Calculate Shipping

FACTS

Only with the high-performance sports brake system, in combination with high power and a sports suspension, can the perfect synthesis of driving dynamics and active safety be achieved.

The 6-piston HEICO high-performance sports brake system sets standards in terms of deceleration, dosing and stability. The brake callipers are designed for maximum stiffness and made of high-strength aircraft aluminium, which reduces the unsprung mass by an impressive 2.5 kilograms per brake caliper compared to the already very good Polestar brake system and thus benefits the driving dynamics.

Together with the 396 millimetre large, perforated and internally ventilated brake discs, the steel flex brake lines and the tuned sports brake pads, this results in a fast, powerful and well controllable response and a shortened braking distance. A V60 T6 Recharge (with a full tank and identical Pirelli P Zero tyres) stops after an impressive 33.3 metres at full braking from 100 km/h and decelerates with 1.36 g at peak. The comparable series values are 37.8 metres and 1.33 g.

Special
Significantly larger brake disc diameter and thickness compared to series, more cross holes (each pre-cast hole is re-drilled and countersunk, which has a favourable effect in terms of flow). Thermally quenched and tempered brake discs. The complex design of the brake disc increases the surface area by around 80 %. This considerably reduces the temperature of the brake disc and thus also its wear. At the same time, this increases the stability.

Quality

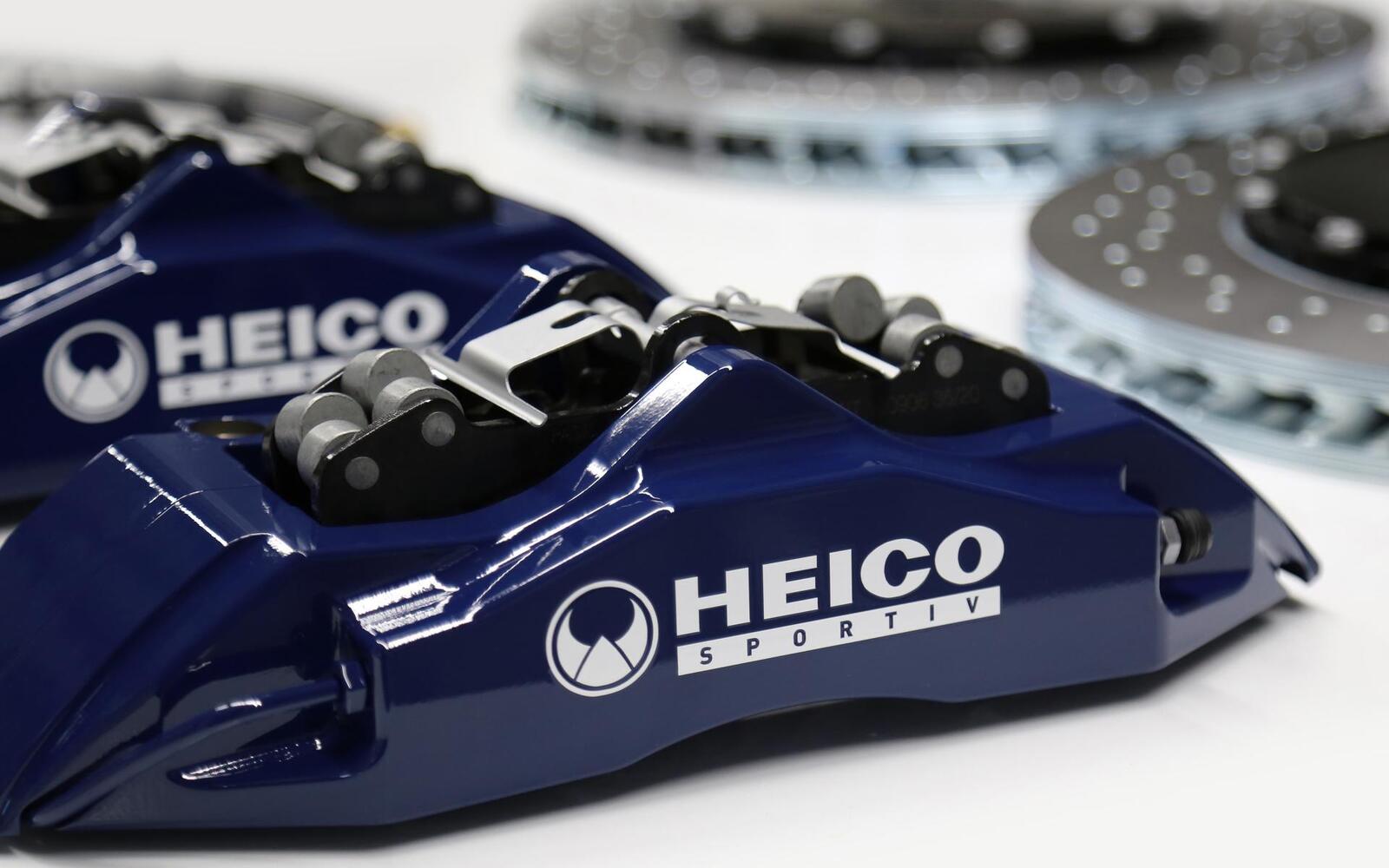

Brake callipers made of high-strength and highly tempered aircraft aluminium, hard anodised and coated 3 times in HEICO Blue

Scope of delivery

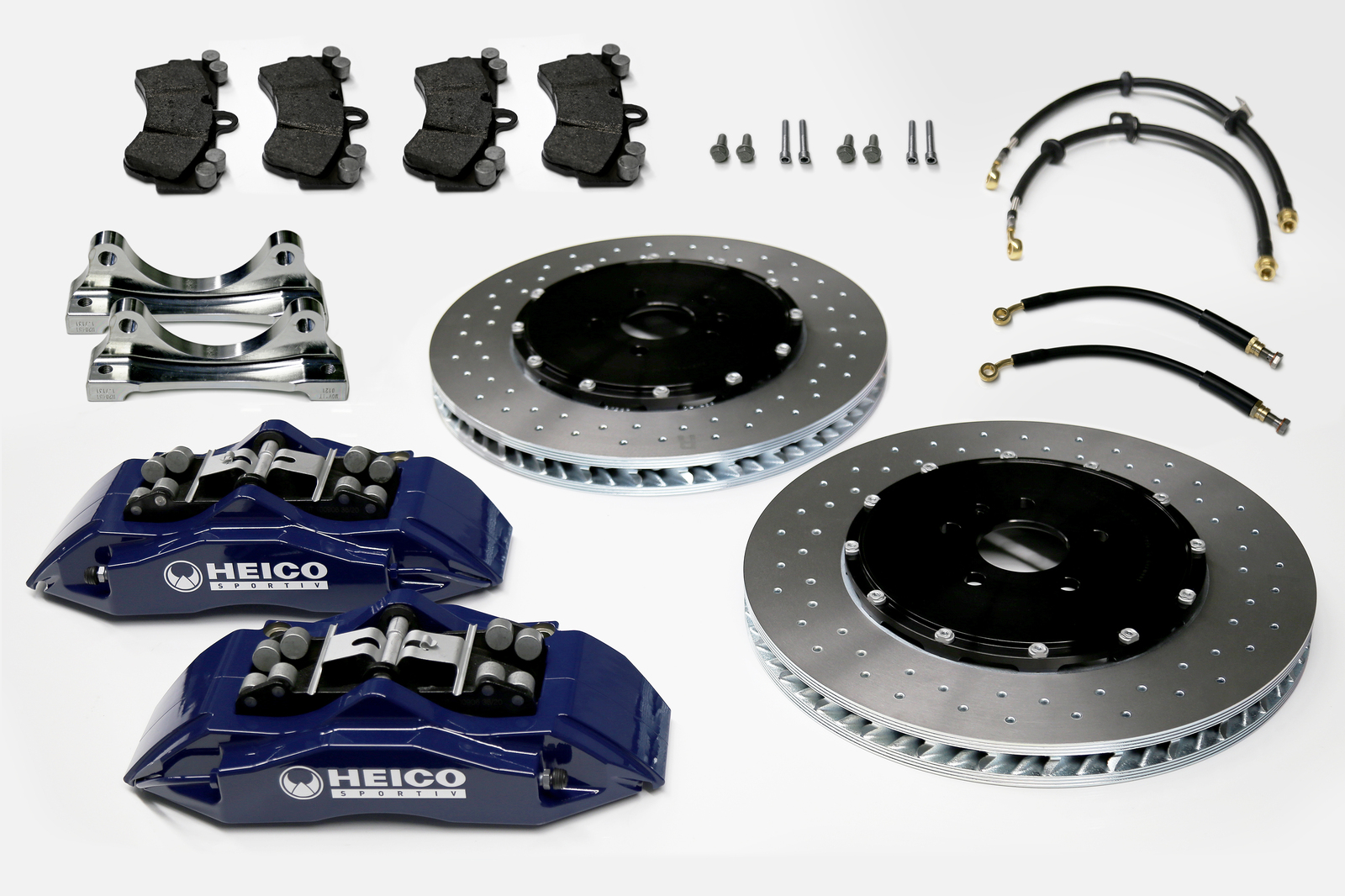

2 front brake calipers in HEICO Blue, perforated and internally ventilated front brake discs, front sports brake pads, steel flex brake lines front and rear, mounting kit

Approval
Including parts expert opinion according to §19.3 (StVZO) and conformity certification (CH) for hassle-free modification acceptance and registration

Installation
Analogue to the standard brake. Correct running-in of the brake system according to our instructions is a requirement for possible later warranty claims and guarantees the best possible braking performance and service life.

Guarantee
Up to 60 months / 150.000 km guarantee from first registration. Scope oriented towards to that of the Volvo Warranty.





NOTES

Please note possible restrictions or information:

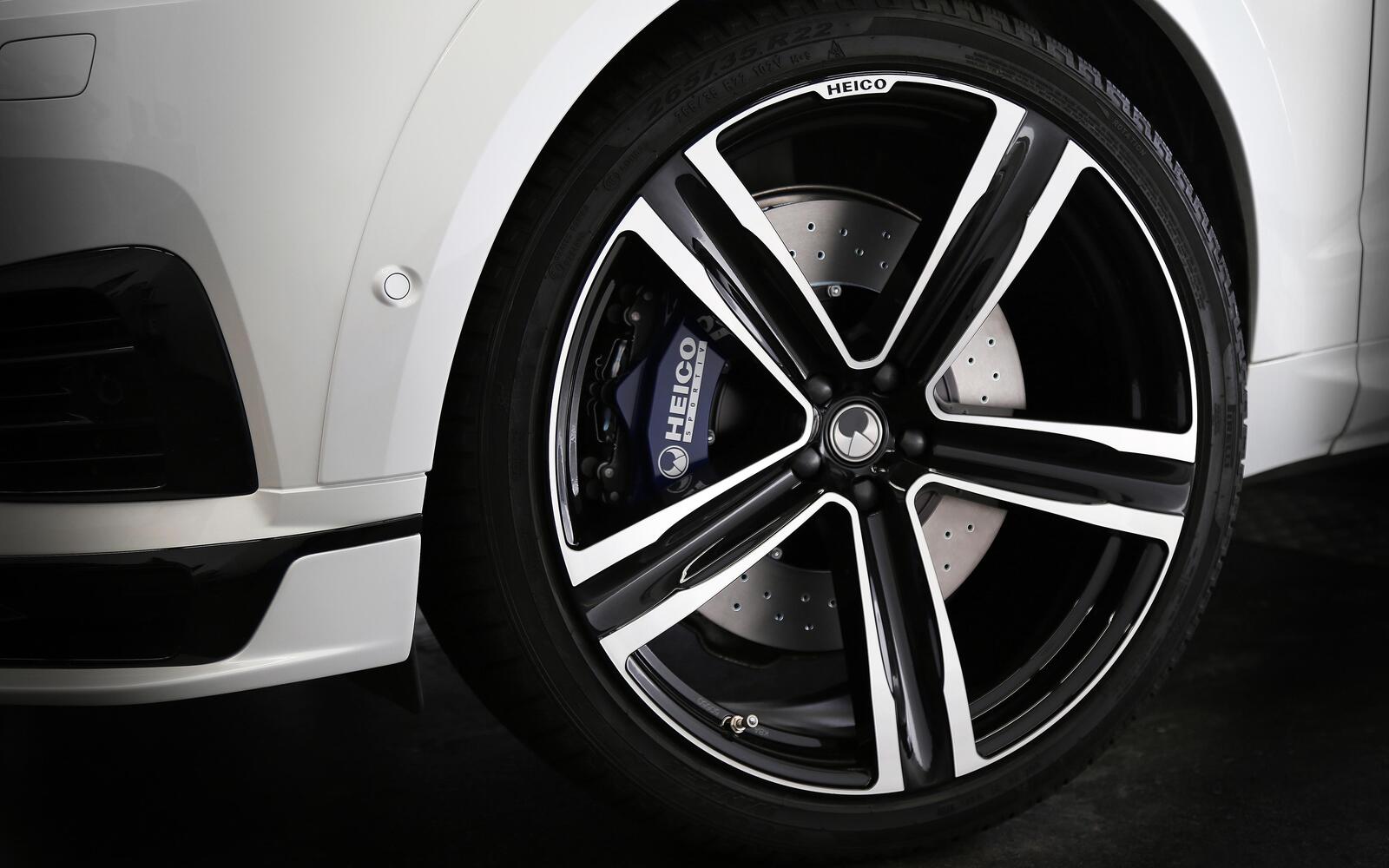

  • Only in conjunction with HEICO SPORTIV alloy wheels H7710220B or H7710220TM. Contact our sales team before ordering.
  • Braking noises can occur under different conditions due to the heavy-duty materials. If these are temporary or situational, they do not represent a safety or quality problem. In most cases, it is possible to eliminate the noise with the correct braking behaviour.
  • Due to the increased friction of the brake system, more brake dust is generated. It is important to remove brake dust at regular intervals by washing the vehicle or wheels to prevent it from burning into the rim surface.





(H5100935)
